Z590主板(BIOS?)问题?Gamers Nexus二测11700K-CPU

瑟瑟发抖的菜鸡 27天前 28

来源:YouTube Gamers Nexus
原文:Intel's Z590 Motherboard Problem: i7-11700K Power & Thermals Explained
地址:https://www.youtube.com/watch?v=S_-p5Zq9u9c
测试主板1:GIGABYTE Z590 AROUS MASTER (F4 BIOS和1/21 BIOS)
测试主板2:ASUS ROG MAXIMUS XIII HERO
通用硬件(随测试项变化可能有差异):EVGA NVIDIA RTX 3080 FTW3/GSkill Trident Z CL14/EVGA T2 1600W
注意(Note):
The Intel i7-11700K didn't do well in our review when compared vs. the AMD R7 5800X, R9 5900X, or even Intel i7-10700K of last generation. We're once again back to explore why performance will be somewhat variable on these 11-series parts, and further, why stability, thermals, and power could be problems with some motherboard configurations. Testing was done using parts we acquired entirely on our own, including from retailers, as open components available on retail channels. Other components, like the Intel i5-11600K and i9-11900K, remain under embargo until a future date as they were provided by Intel.

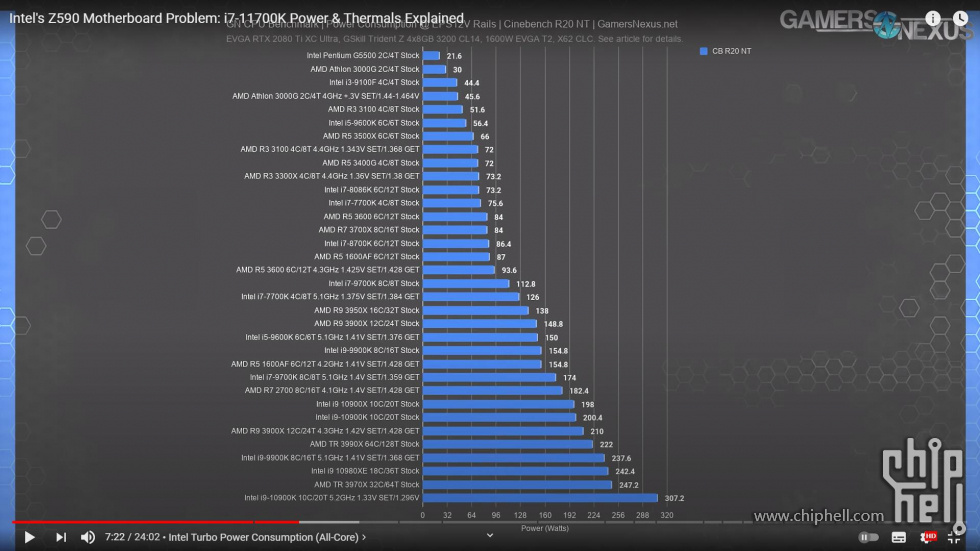

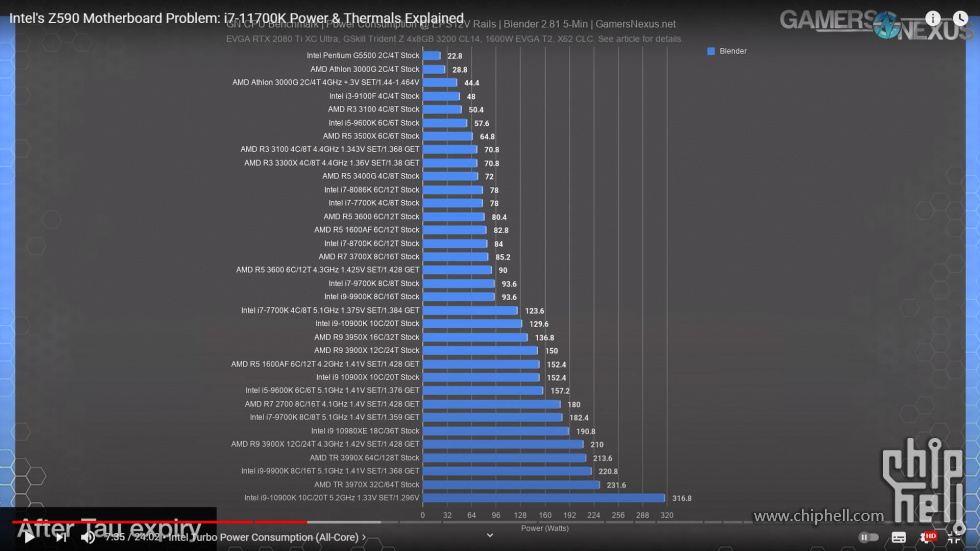

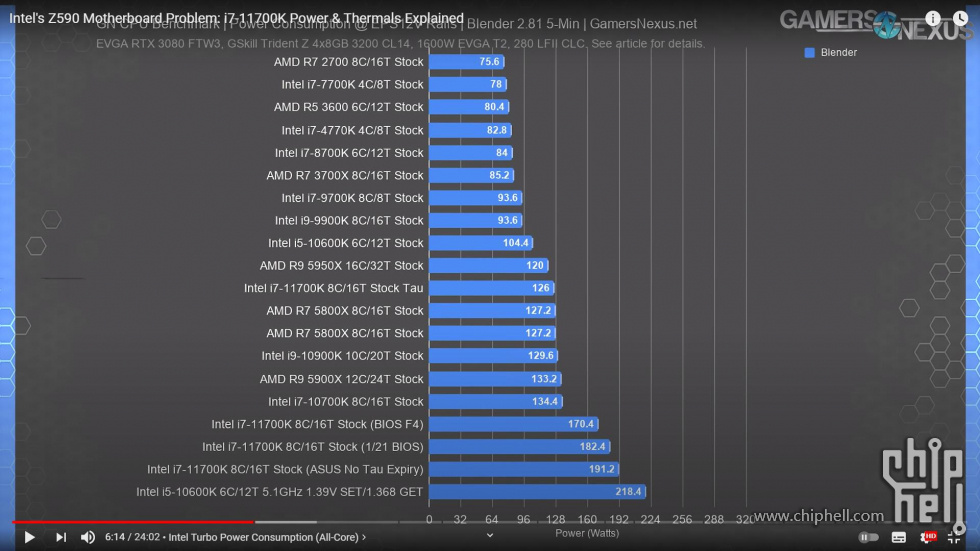

测试1:Intel Turbo Power Consumption (All-Core)
测试项:Power Consumption @ EPS12V Rails Blender 2.81 5-Min/Cinebench R20 NT

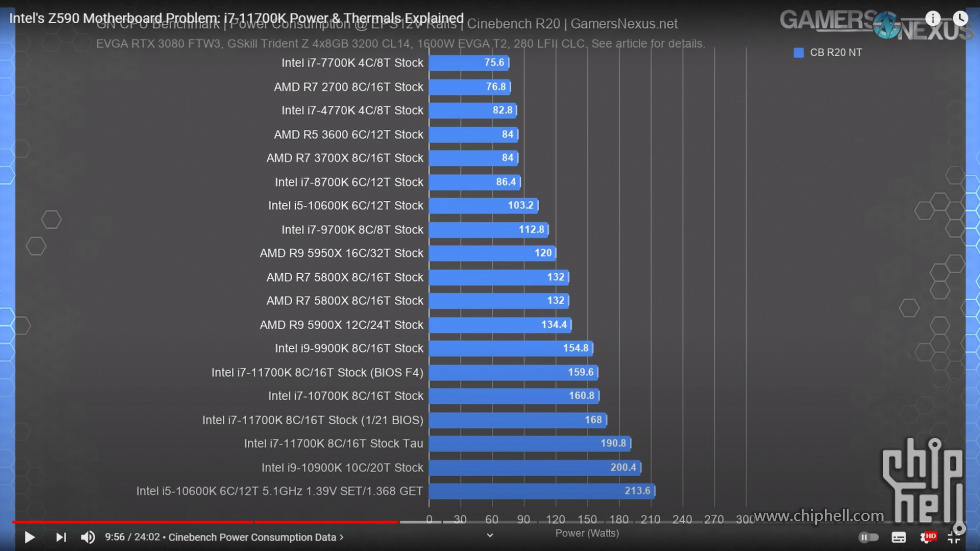

测试2:Cinebench Power Consumption Data
测试项:Power Consumption @ EPS12V Rails Cinebench R20

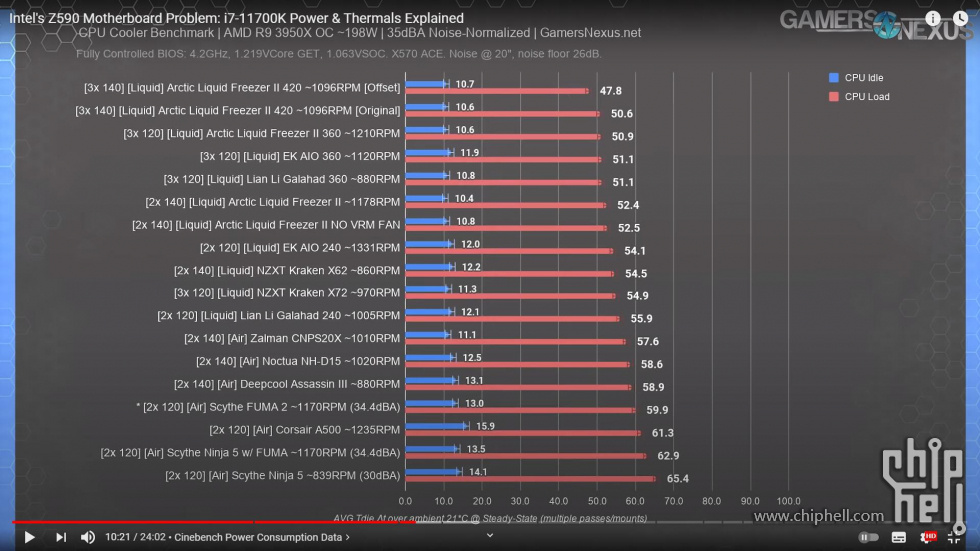

补充测试:AMD R9 3950X OC 198W 35dBA Noise-Normalized (4.2GHz 1.219 VCORE + 1.063 VSOC X570 ACE, Noise @ 20'', Noise floor 26dB)

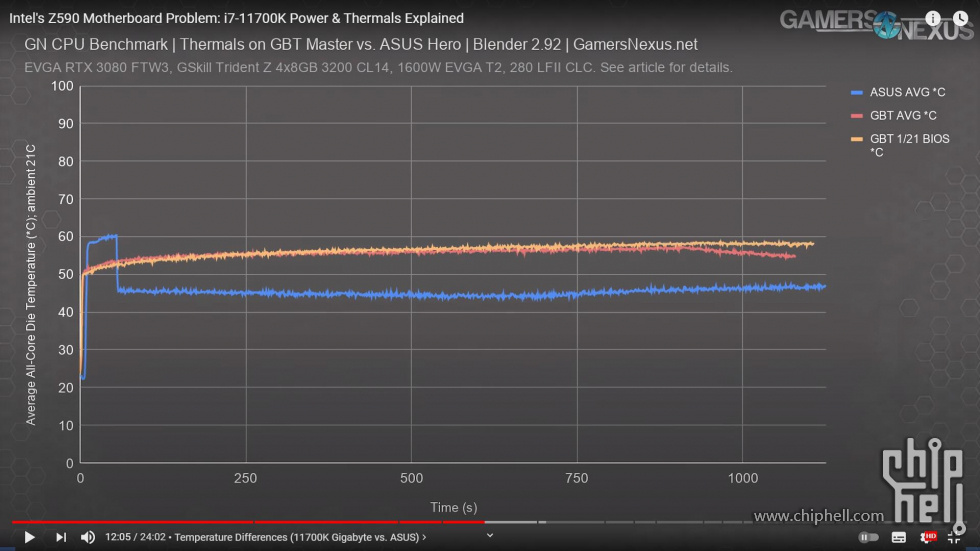

测试3:Temperature Differences (11700K Gigabyte vs. ASUS)
测试项:Thermals on GBT Master vs. ASUS Hero Blender 2.92

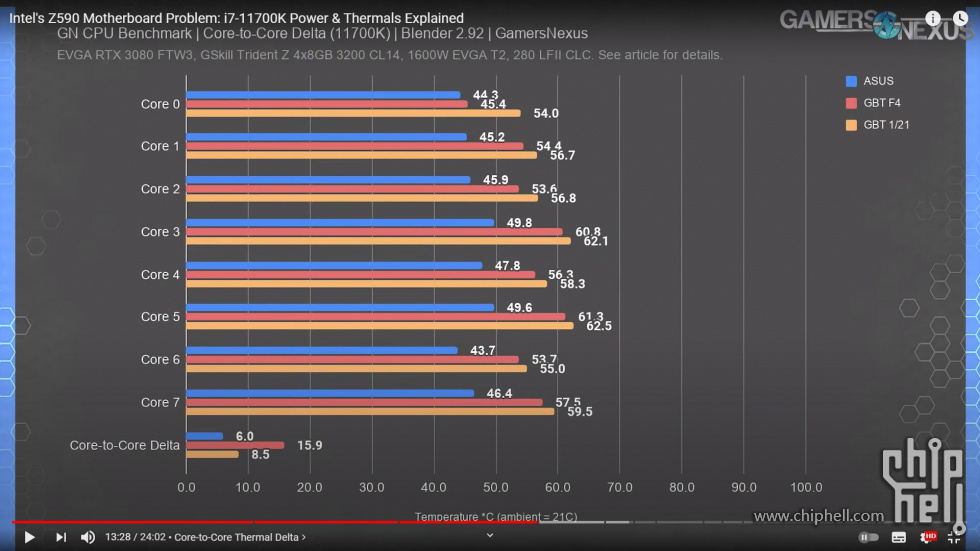

测试4:Core-to-Core Thermal Delta
测试项:Core-to-Core Delta (11700K) Blender 2.92

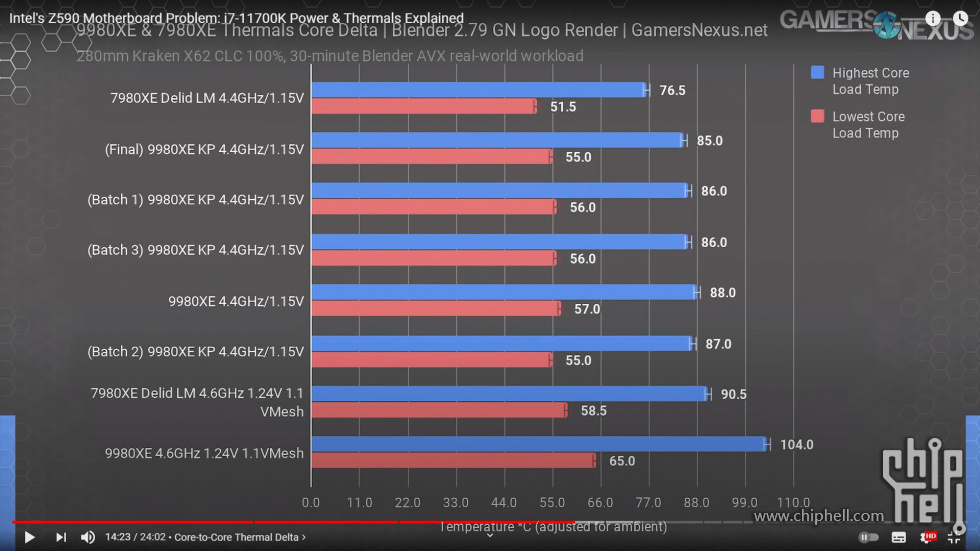

补充测试:9980XE & 7980XE Thermal Core Delta Blender 2.92 Gamers Nexus Logo Render

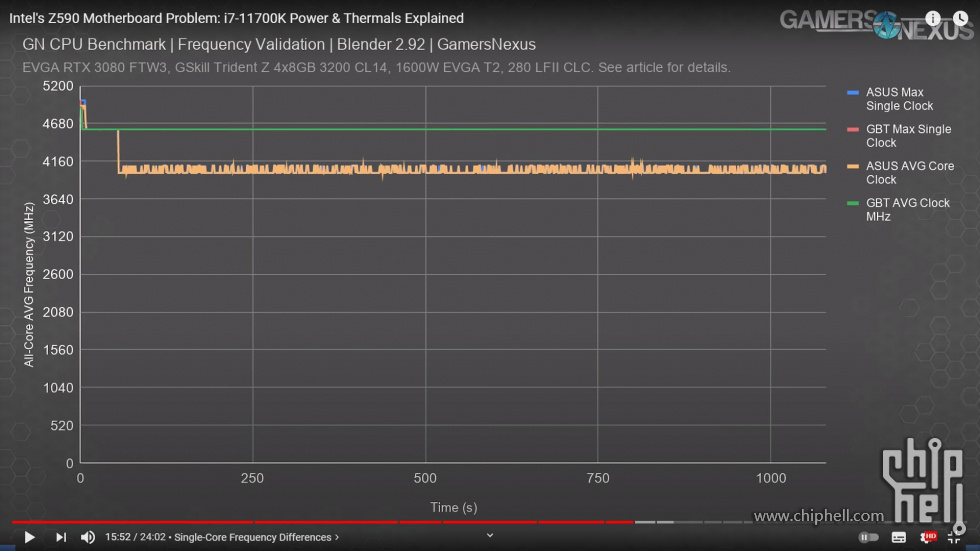

测试5:Differences in All-Core Frequency(蓝色、黄色基本重叠)
测试项:Frequency Validation Blender 2.92

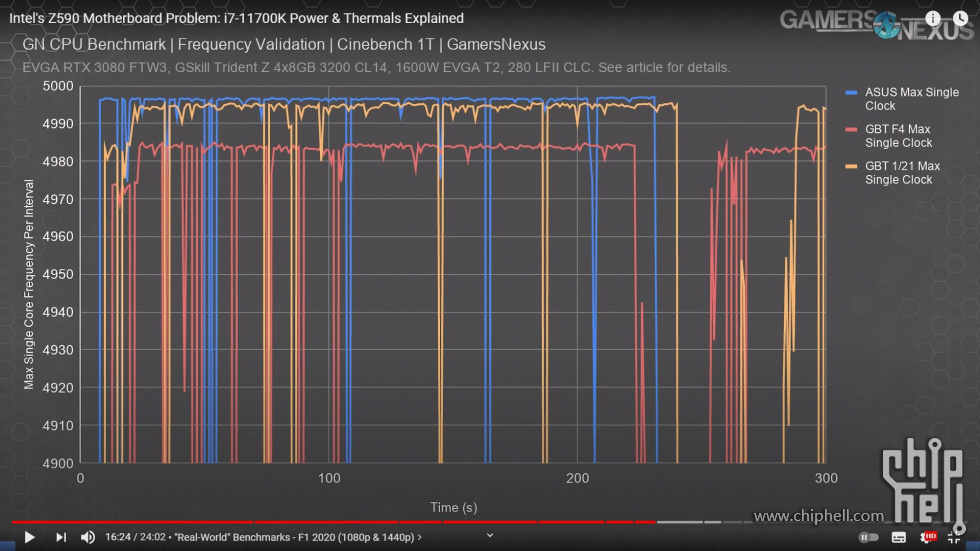

测试6:Single-Core Frequency Differences
测试项:Frequency Validation Cinebench 1T

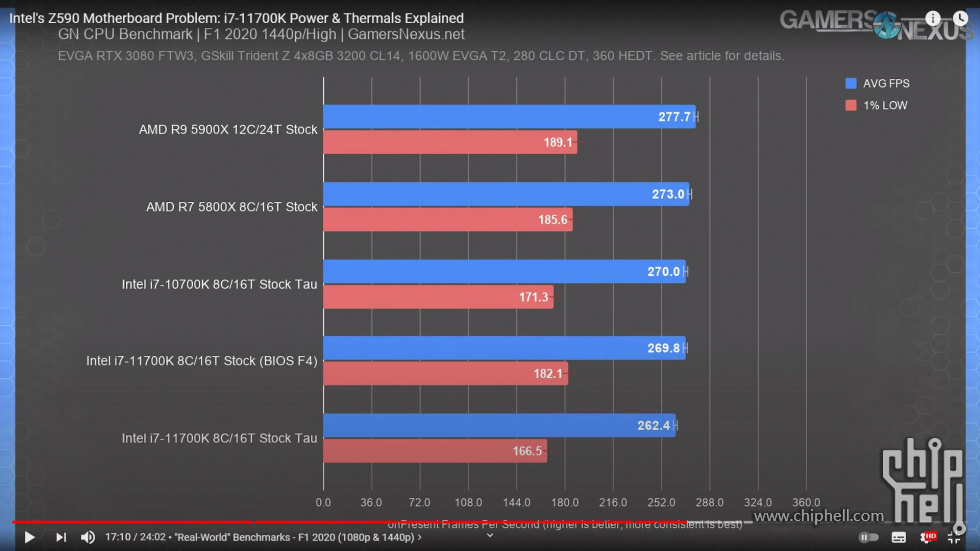

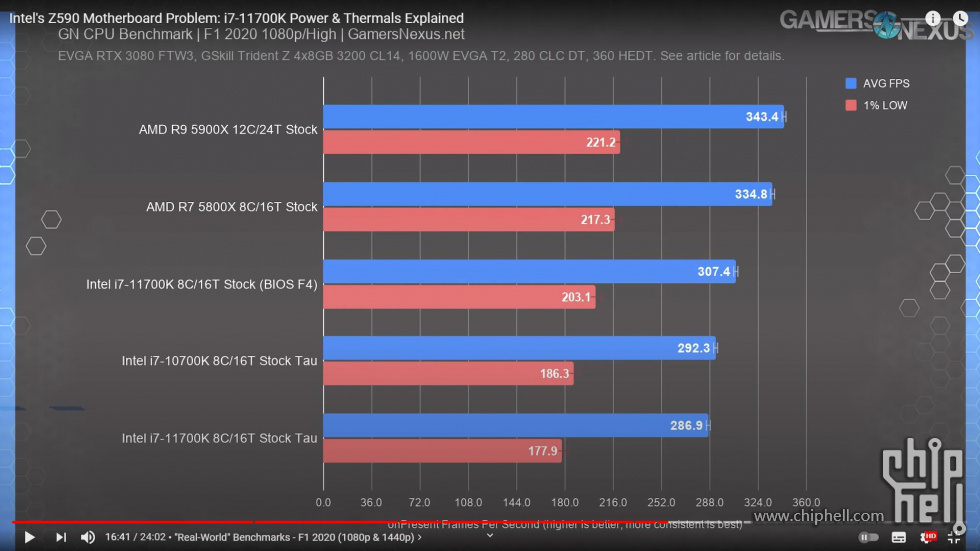

测试7:Real-World" Benchmarks - F1 2020 (1080p & 1440p)
测试项:F1 2020 1080P/1440P High

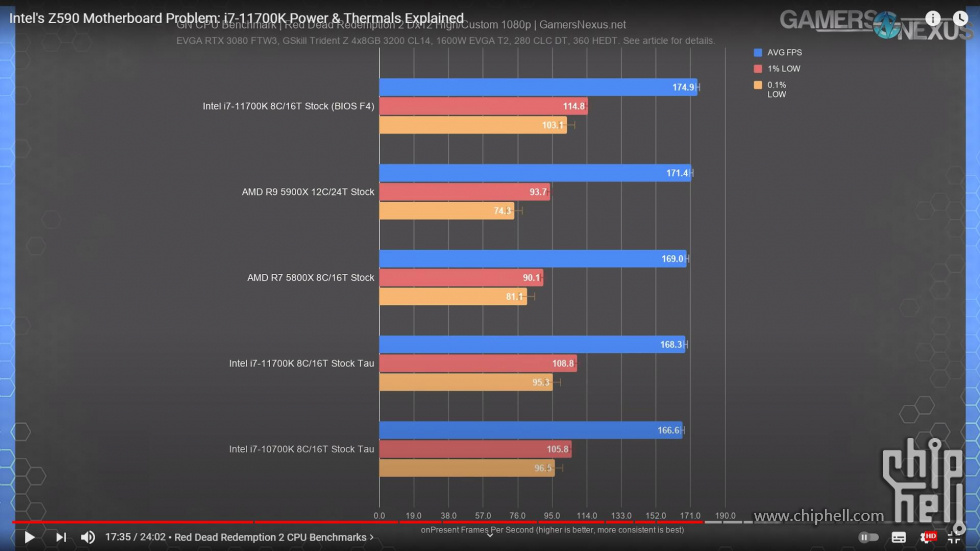

测试8:Red Dead Redemption 2 CPU Benchmarks(荒野大嫖客2)
测试项:Red Dead Redemption 2 DX12 HighCustom 1080P

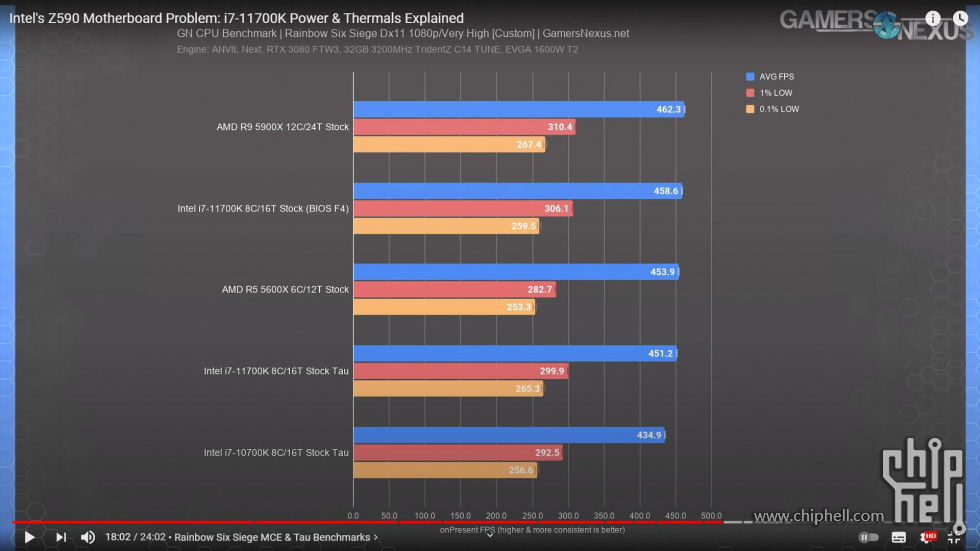

测试9:Rainbow Six Siege MCE & Tau Benchmarks(彩虹六号)
测试项:Rainbow Six Siege DX11 1080P Very High Custom

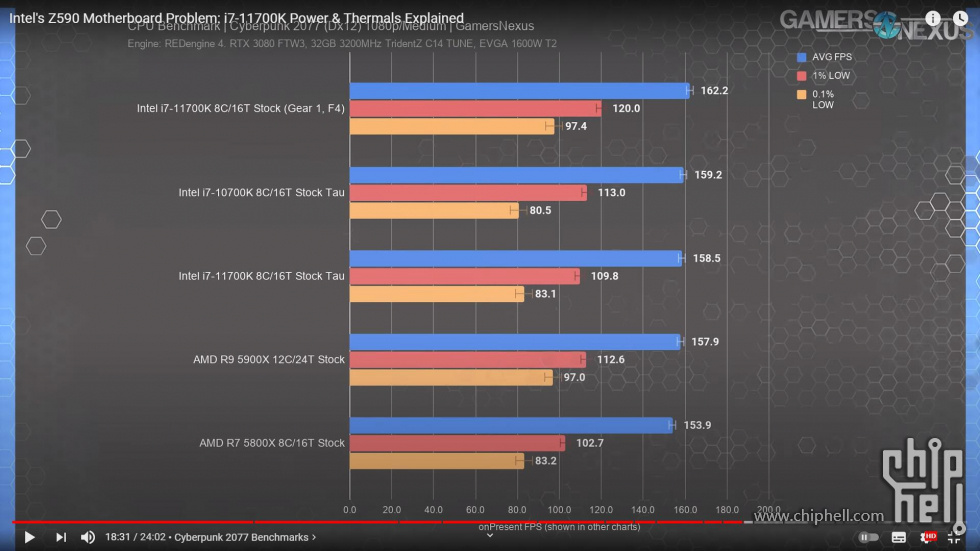

测试10:Cyberpunk 2077 Benchmarks(赛博朋克2077)
测试项:Cyberpunk 2077 DX12 1080P Medium

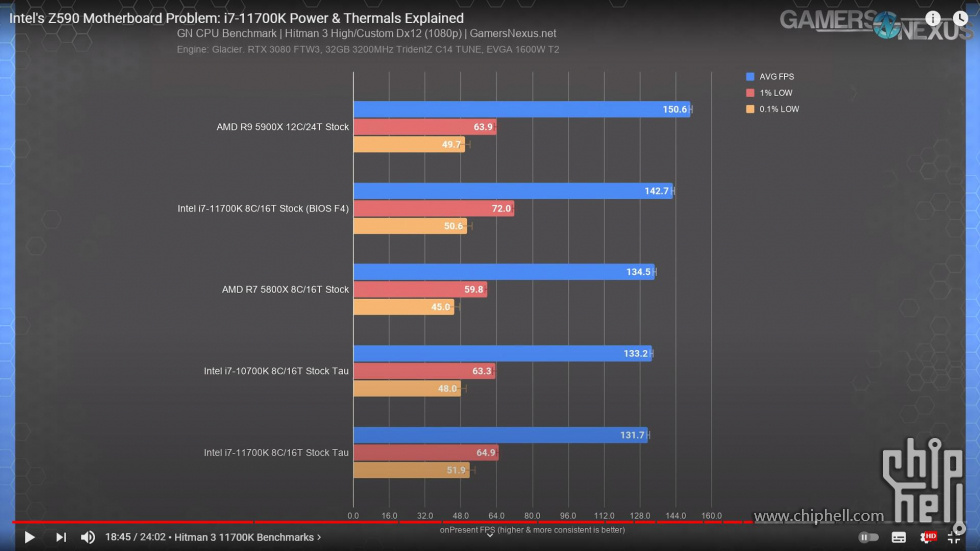

测试11:Hitman 3 11700K Benchmarks(杀手3)
测试项:Hitman 3 HighCustom DX12 1080P

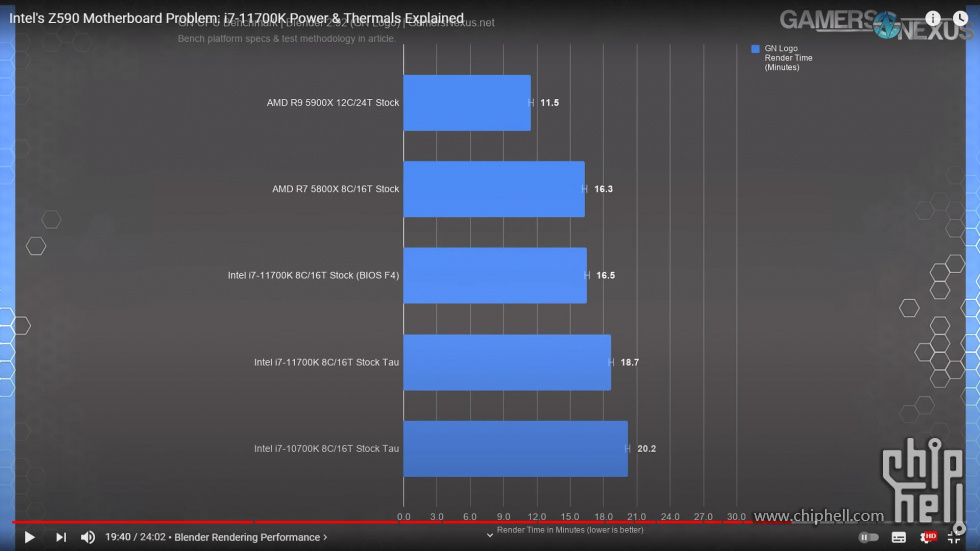

测试12:Blender Rendering Performance
测试项:Blender 2.92 Gamers Nexus Logo

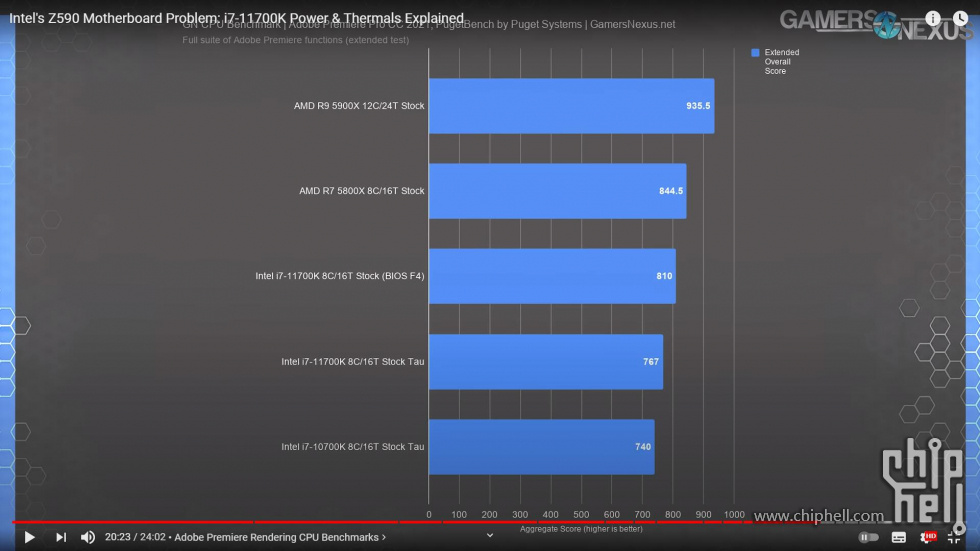

测试13:Adobe Premiere Rendering CPU Benchmarks
测试项:Adobe Premiere Pro CC 2021 PugetBench by Puget System

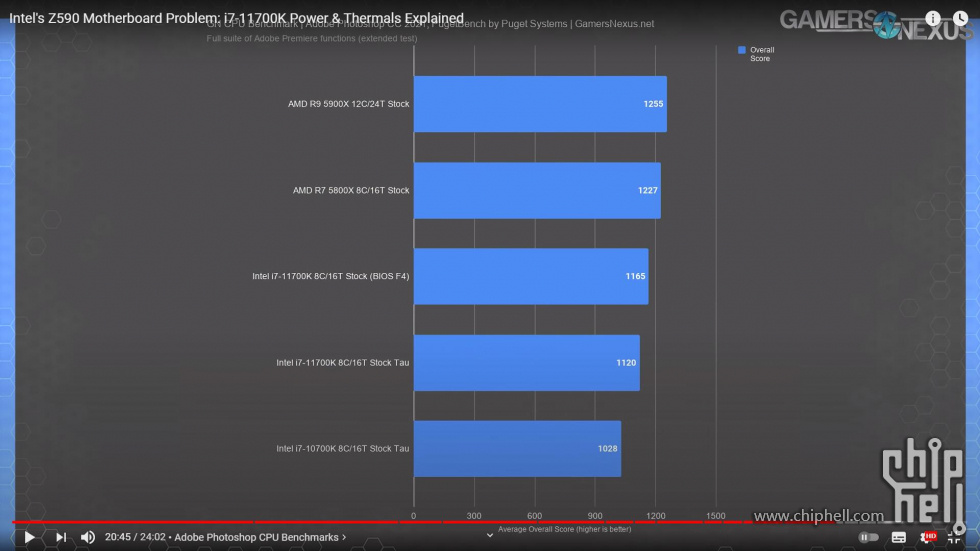

测试14:Adobe Photoshop CPU Benchmarks
测试项:Adobe Photoshop Pro CC 2021 PugetBench by Puget System

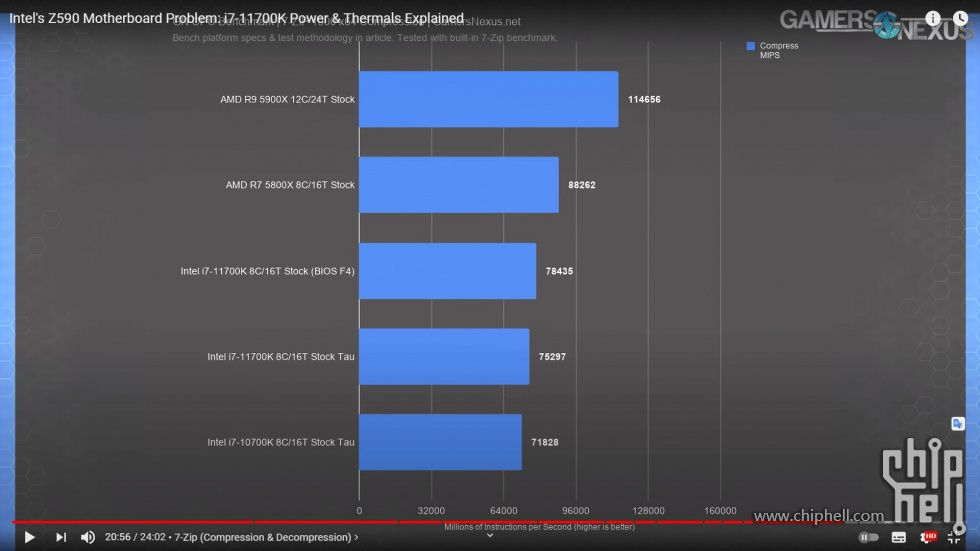

测试15:7-Zip (Compression & Decompression)
测试项:7-Zip 19.00 x64 Compression/Decompression

测试16:Chromium Code Compile Benchmark
测试项:Chromium Compile Windows
测试环境:MSVC + clang-cl + Ninjia
测试内存:64GB for CPUs that page out + 32GB otherwise

最新回复 (3)
  • BFG9K 27天前
    引用 2
    这还不是最新的微码
  • Gentiana 27天前
    引用 3
    打平58x就算胜利,我现在有点在意11600K和11400表现如何
  • Narumi 27天前
    引用 4
    590大多都没更11代微码,现在没有意义,只有华硕在跟进
